How to Extend the Service Life of Drag Chain Cables Under Frequent Bending and Movement Conditions

2025-08-11 10:49:57

Drag chain cables are indispensable in automated machinery, robotics, and CNC systems, where they endure constant flexing as equipment moves. However, repeated bending cycles can lead to insulation cracking, conductor fatigue, or shielding failure if not managed properly. This article outlines actionable strategies to maximize drag chain cable lifespan under high-stress conditions.

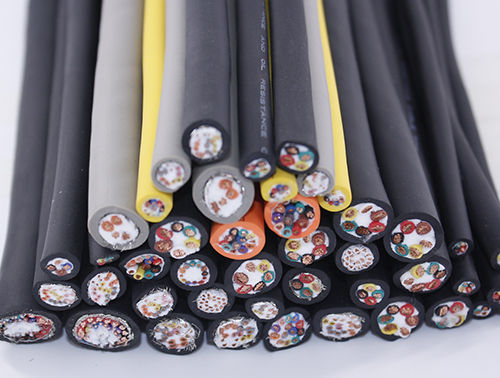

1. Select Cables Specifically Designed for Drag Chain Applications

The foundation of longevity lies in choosing cables engineered for dynamic environments:

Flexible Conductors: Opt for cables with stranded copper conductors (e.g., Class 5/6 per IEC 60228) instead of solid wires. Fine-stranded designs (e.g., 0.08 mm² strands) distribute stress more evenly, resisting breakage during bending.

High-Grade Insulation: Use materials like TPE (thermoplastic elastomer) or PUR (polyurethane), which offer superior flexibility and abrasion resistance compared to PVC. For high-temperature applications (e.g., near motors), silicone-insulated cables withstand up to 180°C.

Reinforced Shielding: For EMI-sensitive signals (e.g., servo motor feedback), select cables with braided copper shielding (≥85% coverage) and a tinned drain wire. Tinned shields prevent oxidation, ensuring consistent grounding over thousands of cycles.

Example: A packaging machine’s encoder cable failed after 6 months due to PVC insulation cracking. Switching to a PUR-jacketed cable with 0.13 mm² fine-stranded conductors extended service life to 3+ years.

2. Optimize Drag Chain Design and Installation

Proper mechanical setup reduces stress on cables:

Bend Radius Compliance: Ensure the drag chain’s minimum bend radius (R) is ≥6× the cable’s outer diameter (D). For example, a 10 mm cable requires a 60 mm bend radius. Smaller radii cause "corkscrewing," where conductors twist and fracture.

Cable Separation: Avoid overcrowding the chain. Maintain a 10–20% empty space to allow cables to move freely without rubbing. Use dividers or cable carriers with separate compartments for power and signal cables to minimize crosstalk.

Tension Control: Install cables with 5–10% slack at both ends to prevent pulling during movement. Use tension relief clamps (e.g., Igus E2.100 series) to anchor cables without constricting them.

Case Study: A 3D printer’s X-axis cable bundle failed due to tight bending in a 40 mm radius chain. Redesigning the chain with a 70 mm radius and adding dividers reduced failures by 90%.

3. Implement Preventive Maintenance Routines

Regular inspections catch issues before they escalate:

Visual Checks: Every 500–1,000 operating hours, inspect for jacket swelling, discoloration, or exposed conductors. Use a magnifying glass to detect micro-cracks in high-flex zones (e.g., near chain bends).

Continuity Testing: For critical circuits (e.g., emergency stops), perform monthly continuity tests with a multimeter (e.g., Fluke 87V). A sudden increase in resistance (>10%) indicates conductor damage.

Lubrication: For metal drag chains, apply dry lubricant (e.g., PTFE spray) to moving parts every 3 months to reduce friction-induced cable wear. Avoid grease, which attracts dust and accelerates abrasion.

4. Limit Operational Stress Factors

Reduce wear by controlling movement parameters:

Speed and Acceleration: Limit travel speed to ≤1 m/s and acceleration to ≤2 m/s² to minimize dynamic forces. High-speed movements (e.g., >2 m/s) increase fatigue cycles exponentially.

Duty Cycle: Avoid continuous 24/7 operation if possible. Implement "rest periods" (e.g., 15 minutes off every 8 hours) to allow heat dissipation and stress relaxation in cables.

Environmental Control: For outdoor or dusty environments, use sealed drag chains (e.g., IP65-rated) and add desiccant packs to prevent moisture ingress, which accelerates insulation degradation.
