How Control Cables Meet High Safety and Low-Latency Requirements to Ensure Safe Train Operations in Rail Transit Signal Control Systems

2025-08-11 11:03:58

In modern rail transit systems—including metros, light rail, and high-speed trains—signal control systems serve as the "nervous system," coordinating train movements, preventing collisions, and ensuring real-time communication between trackside equipment, onboard controllers, and central command centers. Control cables, as the physical medium for transmitting critical safety signals, must meet stringent requirements for high reliability, ultra-low latency, and electromagnetic immunity to safeguard passenger safety. This article explores how specialized cable design and deployment strategies address these challenges in complex rail environments.

1. Safety-Critical Design: Redundancy and Fail-Safe Mechanisms

Rail signaling protocols like ETCS (European Train Control System) or CBTC (Communication-Based Train Control) demand zero-failure tolerance for signals governing train braking, speed limits, and track switching.

Dual-Redundant Cabling: Deploy two independent cable paths for each critical signal (e.g., emergency stop commands). If one cable fails due to physical damage or EMI, the backup channel ensures uninterrupted transmission.

Fail-Safe Conductors: Use cables with self-monitoring insulation (e.g., semi-conductive layers that trigger alarms when insulation breaks down) to detect faults before they cause system failures.

Fire-Resistant Materials: Comply with standards like EN 50306 or NFPA 130 by using low-smoke zero-halogen (LSZH) jackets and mica-tape-wrapped conductors, which maintain circuit integrity for ≥90 minutes during fires.

Example: In the London Underground’s CBTC upgrade, dual-redundant fiber-optic cables were installed alongside traditional copper cables for speed commands. This redundancy reduced signal loss incidents by 98% over five years.

2. Low-Latency Transmission: Minimizing Signal Propagation Delays

For high-speed trains (e.g., 350 km/h), even millisecond-level delays in braking commands can extend stopping distances by meters, risking collisions.

Fiber-Optic Cables for High-Speed Data: Replace copper cables with single-mode fiber (SMF) for long-distance signal transmission (e.g., between trackside beacons and trains). SMF offers <1 μs latency per kilometer and immunity to EMI.

Optimized Copper Cables for Short-Range Links: For short hops (e.g., within signal cabinets), use low-capacitance twisted pairs (≤50 pF/m) to reduce signal distortion and delay.

Deterministic Network Protocols: Pair cables with time-sensitive networking (TSN) standards like IEEE 802.1Qbv, which prioritize safety-critical signals (e.g., emergency stops) over non-critical data (e.g., passenger Wi-Fi).

3. Electromagnetic Immunity: Blocking Interference from Trackside Equipment

Rail environments are rife with EMI sources:

Traction power systems (25 kV AC overhead lines)

Regenerative braking systems (inducing voltage spikes)

Mobile networks (5G base stations near tracks)

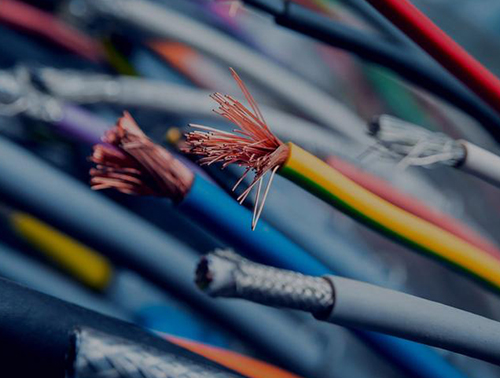

Multi-Layer Shielding: Combine aluminum/polyester foil (100% coverage) with a tinned copper braid (≥85% coverage) to block both high-frequency (RF) and low-frequency (power line) noise.

Surge Protection Devices (SPDs): Install SPDs at cable entry points to clamp voltage spikes (e.g., from lightning strikes or switching transients) to safe levels (<60 V).

4. Environmental Robustness: Withstanding Vibration, Temperature Extremes, and Moisture

Rail cables must endure:

Constant vibration from train passages

Temperature swings (-40°C to +70°C)

Humidity and condensation in tunnels

Flexible Stranded Conductors: Use fine-stranded copper (Class 6 per IEC 60228) to resist fatigue from vibration.

Thermoplastic Elastomer (TPE) Jackets: TPE offers better water resistance and UV stability than PVC, critical for outdoor trackside installations.

IP68-Rated Connectors: Seal cable joints with waterproof connectors to prevent moisture ingress, which can cause short circuits.
